A practical automatic Bigstren stripper for fast and precise work with wires. It enables automatic stripping of single-core and multi-core cables, cutting wires, and crimping connector terminals. It also includes pressure adjustment and an adjustable length stop for repeatable results without damaging the wire.
Automatic stripping without unnecessary effort
The front automatic mechanism enables fast and precise stripping of single-core and multi-core wires. Just insert the cable into the jaws and squeeze the handle.

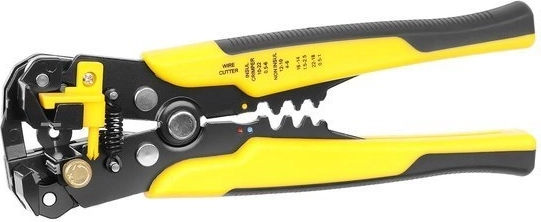

3-in-1: stripping, cutting and crimping
In one tool you get a stripper, a wire cutter (11 mm blade) and crimping pliers for insulated and non-insulated connector terminals within the specified ranges.

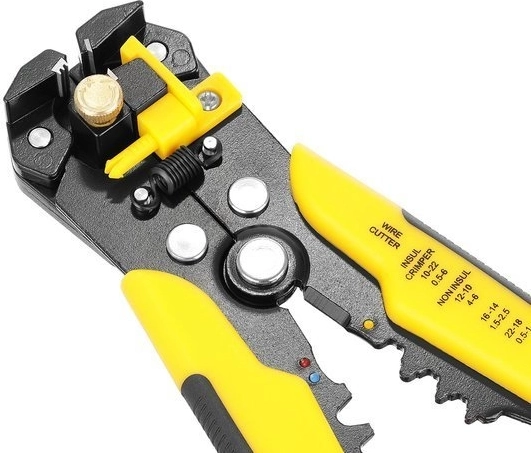

Pressure adjustment and adjustable length stop
The rotary wheel under the jaws allows you to set the clamping force according to the type of insulation to avoid damaging the wire. The adjustable length limiter helps achieve consistent results.
An automatic insulation stripper is a useful tool for electricians and DIYers. Just insert the cable into the jaws so it sits straight against the tool and squeeze the handle – the mechanism performs stripping quickly and cleanly.
It also includes a wire cutter with an 11 mm blade located between the handles. For crimping, you can use the integrated press for insulated and non-insulated connector terminals within the specified ranges.
Main benefits and features:
- Stripping wires across a wide range of cross-sections
- Cutting cables (11 mm blade)
- Crimping insulated and non-insulated connectors
- Clamping force adjustment via a rotary wheel (lower risk of wire damage)
- Adjustable length stop for repetitive work
- Non-slip handles for a secure grip
Specifications
- Manufacturer
- Maxy
- Brand
- Bigstren
- Color
- yellow-black
- Material
- zinc alloy, PP, TPR, iron
- Non-slip surface
- yes
- Mechanism
- front, automatic
- Functions
- stripping, crimping, cutting, adjustment wheel, adjustable length stop
- Cable stripping (cross-section)
- 0.2–6 mm² (10–24 AWG)
- Crimping insulated terminals
- 0.5–6 mm² (22–10 AWG)
- Crimping non-insulated terminals
- 4–6 mm² (12–10 AWG); 1.5–2.5 mm² (16–14 AWG); 0.5–1 mm² (22–18 AWG)
- Dimensions (L/W/H)
- 20 × 10 × 3 cm
- Weight
- 0.35 kg
- Packaged weight
- 0.4 kg
- Cutter blade length
- 11 mm
